Blood Pressure Module* MS5536

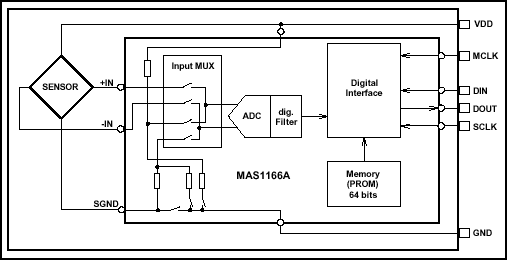

MS5536	Block diagram MS5536
DESCRIPTION The MS5536 is a high resolution factory calibrated gage pressure module. The leaded hybrids are compatible with standard PCB assembly technologies. The devices include a piezoresistive pressure measurement cell and an amplifier-A/D interface-IC. The 3-wire serial interface ensures simple communication with any microcontroller. The devices provide digital pressure and temperature information as 16-Bit data word each. In addition 64 bits of individual calibrated compensation coefficients are stored allowing a highly accurate software compensation of process spread and temperature effects. The devices have a very low standby current and automatic power down mode after each conversion. The optimal compromise about refresh rate and average current consumption can be defined by the application software. MS5536NJU: protected by a plastic cap with vertical port on a ceramic hybrid, 10x13mm Pressure range: -14.5 ... 6 PSI; operation temperature -40 ... +60°C MS5536PJU: protected by a plastic cap with vertical port on a ceramic hybrid, 10x13mm Pressure range: -6 ... 14.5 PSI; operation temperature -40 ... +60°C *Modules are pressure sensors, whose output signals have to be calculated by an external microprocessor
DESCRIPTION Automatic Power Down Very low power consumption Ideal for battery applications High precision through individual correction data Pressure and temperature output with 16-Bit-Word	APPLICATIONS Medical application Blood pressure meter Air flow measurement HVAC applications Liquid level measurement Detailed application support: MEAS Switzerland S.A. DOWNLOAD Datasheet MS5536 Application note an510: Using SPI protocol with pressure sensor modules Application note an808: Soldering of sensors
For information according to prices, delivery dates and sample ordering or for technical questions please contact info@amsys.de.
